High Quality Lab Testing Equipment Machine Touch Automatic Pressure Testing Machine

Basic Info.

Model NO.	CAT-100
Measurement Range	2%-100%
Testing Machine Accuracy Level	Level 1
Test Force Accuracy	Better Than ±1% of The Indicated Value
Crossbeam Displacement Measurement	Resolution Is 0.01mm
Deformation Accuracy	Better Than ±1%
Speed Regulation Range	2000n/S
Column Spacing	300mm
Motor Power	0.75kw
Host Size	420*380*890mm
Power Supply Voltage and Power	220V±10% 50Hz
Working Environment	Room Temperature ~45ºC, Humidity 20%~80%
Displacement Resolution	0.01mm
Compression Space	150mm
Transport Package	According to Customer Requirements
Trademark	Lasnov
Origin	China

Product Description

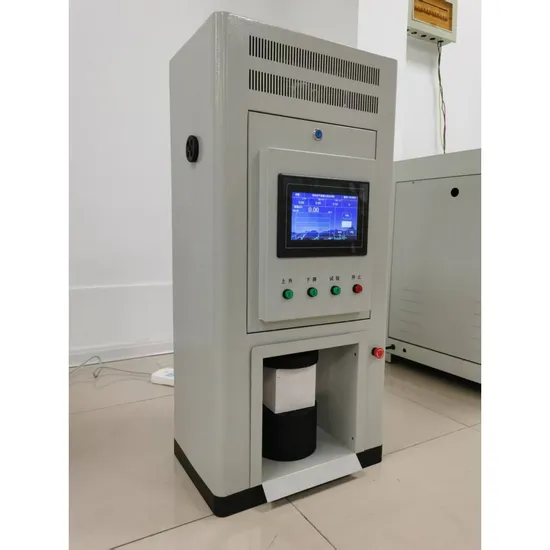

CAT-100 touch automatic pressure testing machine: The testing machine is a portal frame structure, and the lower space is the testing space. 1. Speed control system: using AC servo motor and speed control system, with stable and reliable performance, and equipped with overcurrent, overvoltage, overload and other protection devices. 2. Transmission mechanism: The transmission part adopts a circular arc synchronous toothed belt and a precision ball screw pair for smooth transmission, low noise, and high transmission efficiency. 3. Operating system: Touch key operation mode, real-time display on LCD monitor, fully Chinese operation, overcomes the problem of easy malfunction of old-fashioned digital tube display, and is beautiful, elegant, convenient and fast. 4. Automatic display: Throughout the entire testing process, the touch screen displays the test force and peak value in real-time. 5. Automatic control: After inputting the test parameters, the test process can be automatically completed. 6. Sample judgment: After the sample ruptures, the pressure plate automatically stops moving. 7. Limit protection: It has mechanical limit protection function.

Q1:What equipments do you supply?
A1: We supply metal testing machine, compression testing machine, concrete testing machine, cement testing machine, and other lab equipments.

Q2: Are your company a trading one or a factory?
A2: Factory+ trade (integration), More than 11 years focusing on test instruments field.

Q3: After an order is placed, when to deliver?
A3: Generally about 7 working days. If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.

Q4: What about the warranty with after-sales services?
A4: The testing machine is guaranteed for 12 months, we can help you to repair your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product,handles guest problems and complaints in a professional and timely.

Q5: What about the product' services and qualit?
A5: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need.products are widely recognized and trusted by users.

CAT-100
Maximum test force	100KN
Measurement range	2%-100% of the maximum test force
Testing machine accuracy level	Level 1
Test force accuracy	Better than ±1% of the indicated value
Crossbeam displacement measurement	Resolution is 0.01mm
Deformation accuracy	Better than ±1%
Speed regulation range	2000N/S
Effective test span	150mm
Column Spacing	300mm
Host size	850×555×1900mm
Power supply voltage and power	220V±10% 50Hz
Weight	About 160kg
Working environment	Room temperature ~45ºC, humidity 20%~80%
