Overview

Basic Info.

Model NO.	HST-10A-3
Max Diameter of Workpiece	500mm
Mass Scope of Workpiece	900kg
Type	Bending Testing Machine
Maxcapacity	>1000KN
Load Way	Mechanical Load
Loading Method	Static Load
Display	Digital
Control	Computer Control
Weight	100-500Kg
Power Source	AC380V
Oil Cylinder Position	Under
Certificates	CE ISO
MOQ	1 Set
OEM	Available
ODM	Available
Site Service	Available
Remote Sevice	Available
Transport Package	Standard Package
Specification	1426× 500× 1850mm
Trademark	HST
Origin	Jinan, Shandong, China
HS Code	8479899990
Production Capacity	300 Sets/Month

Product Description

HST-Hydrostatic Pressure Tester for pipe burst and pressure test ISO1167 ASTM D 1598 ASTM D 1599

Application:

Product Description

is mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature. It is applicable to thermoplastic pipes intended for the conveyance of fluids. It confirms to ISO1167,ASTM D1598 and ASTM D1599.

Features 1.Operating terminal with touch screen or PC for test parameter settings. 2.On less than 1m2 area, up to 50 different pressures including the pressure water supply. 3.It is intelligent to distinguish the size and material of specimen, then provide optimized pressure rising solution and algorithm. 4.High accuracy pressure control. Selectively adjustable input pressure in each individual module reduces the wearing of solenoid valves, endures a long service life. 5.All metal components that come into contact with the medium are made of high-quality stainless steel. 6.Operator-friendly display interface provides multi languages to suit the most varied customer requirements. 7.It is convenient to calibrate pressure during testing, meaning that the system may continue running during calibration(optional). 8.Multistage protections are from electric partt, mechanical part as well as software. 9.Reliable data exchange via TCP/IP protocol.

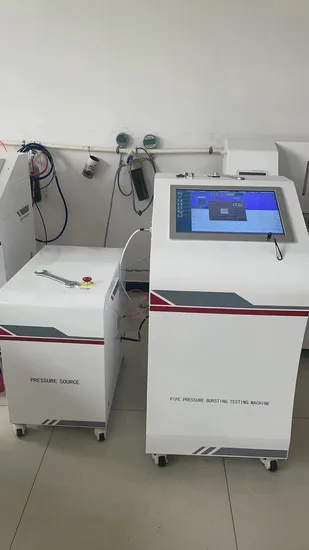

HST-10A-3 Pipe Pressure Burst Testing Machine
Test pipe diameter range	D16~1000
Number of test routes	3 way
Control method	PC control
Data preservation	Each channel has a power-off data protection function, which can be restored after power-on
Time	Timing	0~9999 hours 59 minutes 59 seconds
	Timing accuracy	±0.1%
	Time resolution	1s
	Minimum setting unit	min
Pressure	Pressure control range	0.4~10MPa can be set arbitrarily; other pressure units can be set such as: MPa, PSI or bar
	Pressure Control Accuracy	-1%~ +2%, can also be set arbitrarily
	Pressure display resolution	0.001MPa
	Measuring range	4%~100%FS
	Indication allowable error limit	Within 1% of the indicated value
