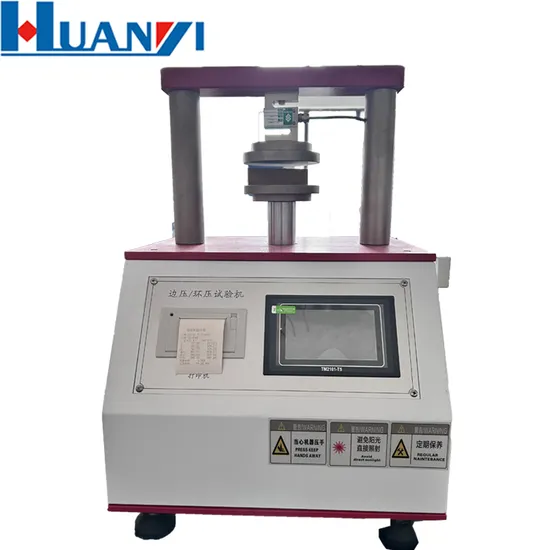

Packaging Paper Side Pressure Ring Pressure Strength Testing Machine

• Overview
• Product Description
• Meet the standards
• Product Parameters
• Company Profile
• FAQ

Overview

Basic Info.

Model NO.	HY
Max Diameter of Workpiece	Other
Mass Scope of Workpiece	Other
Type	Edge Pressure Ring Crush Strength Tester
Maxcapacity	Customizable
Accuracy Grade	Customizable
Load Way	Customizable
Loading Method	Customizable
Display	Digital
Control	Computer Control
Weight	Customizable
Power Source	AC220V
Oil Cylinder Position	Other
Measuring Range	0 - 3000 N
Resolution	0.01 N
Accuracy	± 1 %
Upper Platen	Ø127
Lower Platen	Ø127
Transport Package	Standard Export Wooden Box
Specification	Customized
Trademark	HUANYI
Origin	China
HS Code	9024800000
Production Capacity	10000pieces/Year

Product Description

Touch Screen Side Pressure Ring Pressure Testing Machine Carton Intelligent Compression Side Pressure Strength Testing Machine
Paperboard ring edge strength testing machine is an indispensable test instrument for paperboard and corrugated paperboard manufacturers as well as relevant scientific research colleges and testing institutions. In the aspect of paper, paper tube and other packaging materials, can carry out a variety of paper quality tests, namely ring pressure (RCT), flat pressure (FCT), edge pressure (ECT) adhesion (PAT) and general compression (CMT), such as 5 kinds of tests, is a combination of multiple functions in one material testing equipment.

Intelligent cardboard edge compression strength tester, also known as computer measurement and control compression tester, cardboard compression testing machine, electronic compression tester, edge pressure meter, ring pressure meter, is the basic instrument for testing the compressive strength performance of cardboard/paper (i.e. paper Packaging testing instrument), equipped with various clamp accessories to test the ring crush strength of base paper, flat crush strength of cardboard, edge crush strength, gluing strength and other tests, so that paper product manufacturers can control production costs and improve product quality. Its various performance parameters and technical indicators comply with relevant national standards.

Implementation standards:
1.GB/T 2679.8-1995 "Determination of ring crush strength of paper and paperboard"
2.GB/T 6546-1998 "Determination of edge pressure strength of corrugated board";
3.GB/T 6548-1998 "Determination of Adhesion Strength of Corrugated Board";
4.GB/T 2679.6-1996 "Determination of Flat Pressure Strength of Corrugated Base Paper";
5.GB/T22874 "Determination of flat crush strength of single-sided and single-corrugated cardboard"

(1) Do you accept customized services?
Yes, of course, we can not only offer standard machines, but also can customize machines according to your requests. Don't hesitate to tell us your requirements, we will try our best to meet your needs.
(2) How about your warranty?
Every machine produced in our factory comes with a 14-month warranty after shipment. Generally, we offer 12 months of FREE maintenance, while considering of shipping time, we can extend for 2 months for our customers.
If your machine doesn't work, you can email us and we will try to find the problem via email or skype video chat if necessary. After confirming the problem, we can send you new instrument accessories or provide on-site maintenance.
(3) What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
(4) How to install and use the product?
We will email you operating instructions and videos in English, or you can download it directly from our official website.
Most of our machines are already a complete part when shipped, which means that they have already been installed, you only need to connect the power cable and can start to use them. If possible, we can also install your machine on site.
(5) Are your company a trading one or a factory?
We are an industry and trade integrated company, engaged in the research and development and production of test instruments, self-produced and self-marketing, the Foreign trade Department was established in 2007, OEM is also acceptable to us.
(6) How to choose the most suitable products?
Our professional team will give you the best advice, as long as you tell us what kind of testing you need to do and the required specifications.
(7) What is the order process?
Inquiry-Quotation-Communication-Order confirmation-Deposit-Production-Testing and debugging-Balance-Packaging-Shipment-Customer reception-After-sales service
(8) Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we can help to arrange hotel and pick you up at the airport.
(9) How about the packing for machine, is it safely protected during transportation?
Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.

Product Description

Meet the standards

Product Parameters

Measuring range	0 - 3000 N	Instrument standards	ISO 13820
Resolution	0.01 N	Units of measurement	N, kN, gf, kgf, tf, lbf
Accuracy	± 1 %	Interface	7-inch color touch screen
Upper platen	Ø127	Output	Thermal printer
Lower platen	Ø127	Power supply	220VAC, 50Hz
Journey	1 - 78 mm	Power	85W
Test speed	12.5 mm/min	Dimensions (length×width×height)	Customizable
Return speed	12.5 mm/min	Weight	46kg
