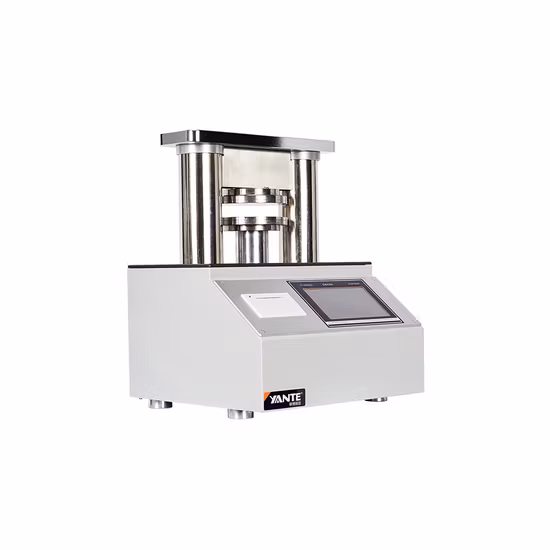

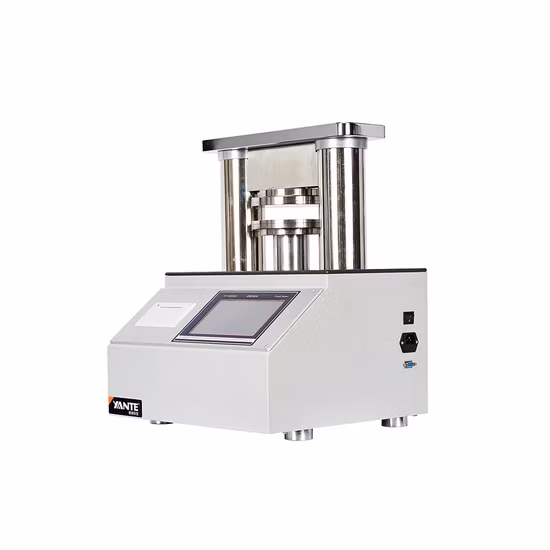

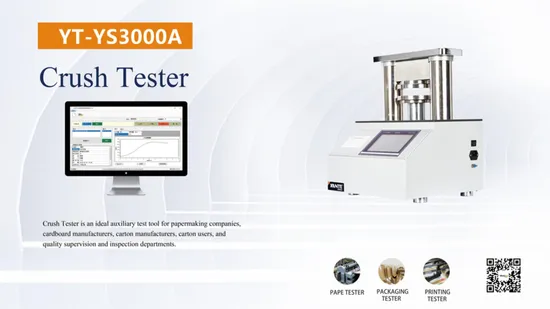

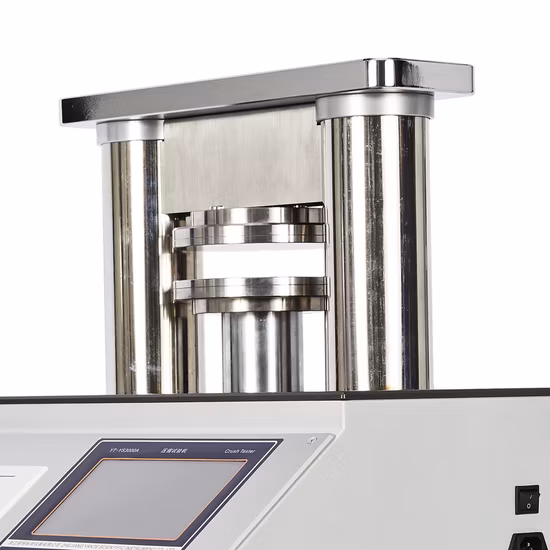

Programmable Automatic Paper Ring Crush Pressure Lab Testing Machine
Programmable Automatic Paper Ring Crush Pressure Lab Testing MachineDescription: Digital Cardboard Ring Crush Strength T;
Basic Info.
Model NO. | HD-A513-2 |
Display | Digital |
Control | Computer Control |
Weight | 0-100Kg |
Power Source | AC220V |
Dimension (L*W*H) | 790*510*1060 mm |
Edge Crush Sample | 25×100 mm |
Operation Mode | LCD |
Display Mode | LCD |
Test Speed | 12.7 mm/Min |
Ring Crush Sample | 152×12.7 mm |
Resolution | 1/100,000 |
Compressed Space | 500 mm |
Precision | < 0.5% |
Platen Parallelism | ± 0.05 mm |
Transport Package | Strong Wooden Case |
Specification | Tappi-T472; T808, T810, T811, T818 |
Trademark | HAIDA |
Origin | Guangdong, China |
HS Code | 9024109000 |
Production Capacity | 1000PCS/Year |
Product Description
Programmable Automatic Paper Ring Crush Pressure Lab Testing MachineDescription:Digital Cardboard Ring Crush Strength Test Machine, Computer servo multi-function carton tension and compression strength tester can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is multi-functional testing machine.
Corresponding standard : IS02759,GB/T1539,QB/T1057,ASTMD3786,GB/T6564,GB/T465
The Main Parameters of Cardboard Ring Crush Strength Test Machine:
Capacity (Optional) | 10, 20, 50, 100, 200 kg |
Resolution | 1/100,000 |
Precision | < 0.5% |
Operation Mode | Computer |
Display Mode | LCD |
Platen | 100×100 mm or depending on the diameter of the flat crush sample |
Compressed Space | 500 mm |
Platen Parallelism | ± 0.05 mm |
Ring Crush Sample | 152×12.7 mm |
Edge Crush Sample | 25×100 mm |
Test Speed | 12.7 mm/min |
Dimension (L×W×H) | 790×510×1060 mm |
Weight | Approx. 51 kg |
Power | AC220V, 1.5A |
Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
