Racket Impact Tester Racket Drop Weight Impact Tester

Basic Info.

Type	Racket Testing Equipment
Accuracy Grade	0.5
Load Way	Electronic Load
Control	Computer Control
Weight	0-100Kg
Power Source	AC220V
Angle	0~45 Degrees Adjustable
Arm	01:01.5
Transport Package	Fumigation-Free Standard Export Wooden Box
Trademark	Hongjin
Origin	China
Production Capacity	1000 Sets/ Month

Product Description

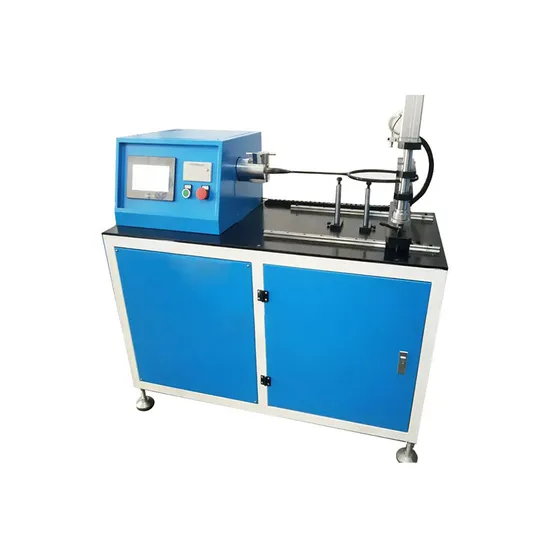

This machine is used to test the torsional strength of badminton rackets and tennis rackets. Fix the head of the frame, clamp the handle, apply a certain torque or twist angle, the torque sensor senses the torque, the rotary encoder senses the angle, cooperate with the U25 controller, and return to the zero point to observe the damage of the sample.

Features of Racket Torsional Strength Testing Machine

This machine adopts precise torque sensor and rotary encoder, which can accurately reflect the torque and rotation angle value. It is controlled by U25 controller, and the test conditions can be set arbitrarily. The sample is easy to hold, the torsion speed can be set within a certain range, and different torsion directions can be selected according to requirements.

Parameters of Racket Torsional Strength Testing Machine

The Introduction Of HongjinHongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience. FAQ 1.Do you offer after-sales service? How can I ask for that? And how about the warranty? Every machine from our factory has a 12-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,we can send you new spare parts or provide on-site repair. 2.. What's the delivery term? At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

Angle	0~45 degrees adjustable
Weight	0.5kg, 1kg
Arm	01:01.5
Dimensions (W*D*H)	100*70*150cm
Weight	80kg
Power supply	AC220V, 5A
