Rock Bolt Pull out Testing Machine Capacity with Testing 100t

Basic Info.

Model NO.	PZ-100T
Transport Package	Carton
Specification	5.5-75KG
Trademark	BOHWA
Origin	China
HS Code	9031809090
Production Capacity	30sets/Month

Product Description

Rock Bolt Pull Out Testing Machine Capacity with Testing 100T
ApplicationPZ Series rock bolt pull out test machine applies to test pull-out resistance of various kinds of rock bolt, anchor cable, rebar, embedded steel bars, expansion bolt, chemical anchor bolt, railspike and other anchoring parts. Technical Specifications

Model	PZ-10T	PZ-20T	PZ-30T	PZ-50T	PZ-60T	PZ-100T
Measurement Range	0-100KN	0-200KN	0-300KN	0-500KN	0-600KN	0-1000KN
Central Hole of Cylinder	27mm	34mm	45mm	60mm	75mm	86/95mm
Stroke	60mm	80mm	80mm	120mm	120mm	150mm
Weight	5.5kg	13kg	15kg	25kg	35kg	50/75kg
Restoration Method	automatic resetting			manual resetting
Manual Pump Capacity	0.7L			4L
Manual Pump Wokring Pressure	63Mpa
Instruments resolution ratio	0.01KN					0.1KN
Tolerance	0.5%F.S
Power Supply Mode	3-AA battery
Display Size	55mmX21mm

Product detail:Manual Pump 1 setHydraulic Cylinder 1 setDigital display instrument 1 set9.8 feet hose 1 pc
Rock Bolt Pull Out Machine Accessories Specification(Optional Components)

Model	PZ-10T	PZ-20T	PZ-30T	PZ-50T	PZ-60T	PZ-100T
Anchorage	Φ6-18	Φ6-25	Φ6-32	Φ20-40	Φ20-40	Φ25-50
Rock bolt	M18	M24	M30	M40	M40	M40
Adapter	M6-18	M6-24	M6-27	M6-39	M6-39	M27-39

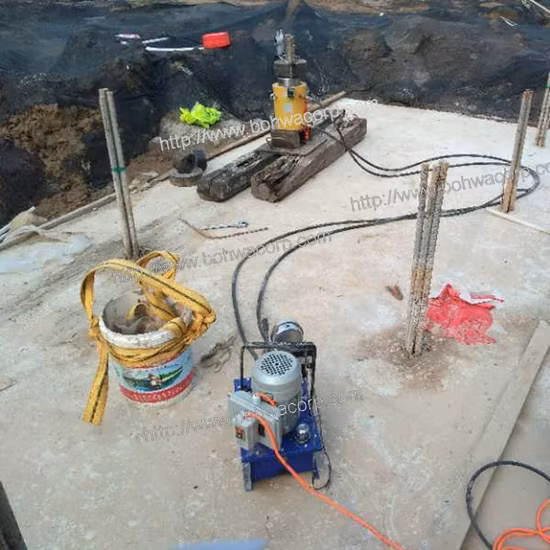

Working Site
