Basic Info.

Model NO.	TLS-S
Accuracy Grade	1
Load Way	Electronic Load
Loading Method	Static Load
Display	Digital
Control	Manual Control
Weight	0-100Kg
Power Source	AC220V
Transport Package	Plywood Exporting Package
Specification	120kg 0.8CBM
Trademark	HST
Origin	Jinan, Shandong, China
HS Code	9024101000
Production Capacity	1000 Sets/Month

Product Description

Application:
This machine is based on the country's spring and compressive tester standards of technical requirement is made, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Can the compression spring, dish above precision extension spring, spring, spring, leaf-spring tower, card of spring, spring, spring, composite, gas springs, die spring, and special spring precision tension of the spring, stress, displacement, stiffness and strength test and analysis.

Main specification:




Company Information CE ISO certificates:

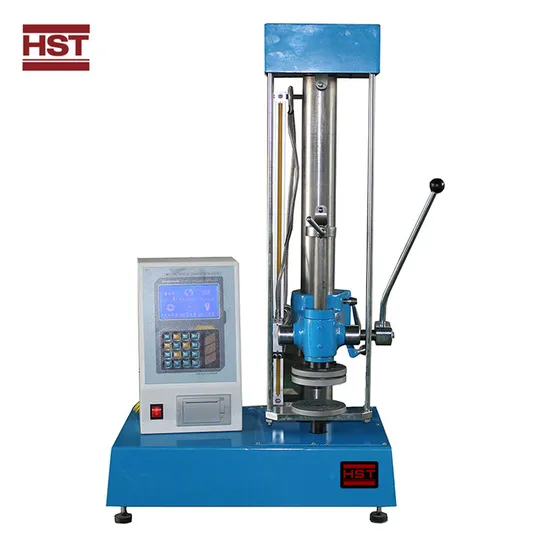

TLS-S Manual Control Digital Display Spring Tester 50N - 2000N

Max test force(N)	50	100	200	500	1000	2000
Test force accuracy(N)	0.005	0.01	0.02	0.05	0.1	0.2
Displacement accuracy (mm)	0.01	0.01	0.01	0.01	0.01	0.01
Tensile test max distance between two pressure plate(mm)	220	220	220	220	270	270
Compression test max distance between two pressure plate(mm)	220	220	220	220	270	270
Plate size(mm)	60	60	60	60	110	110
